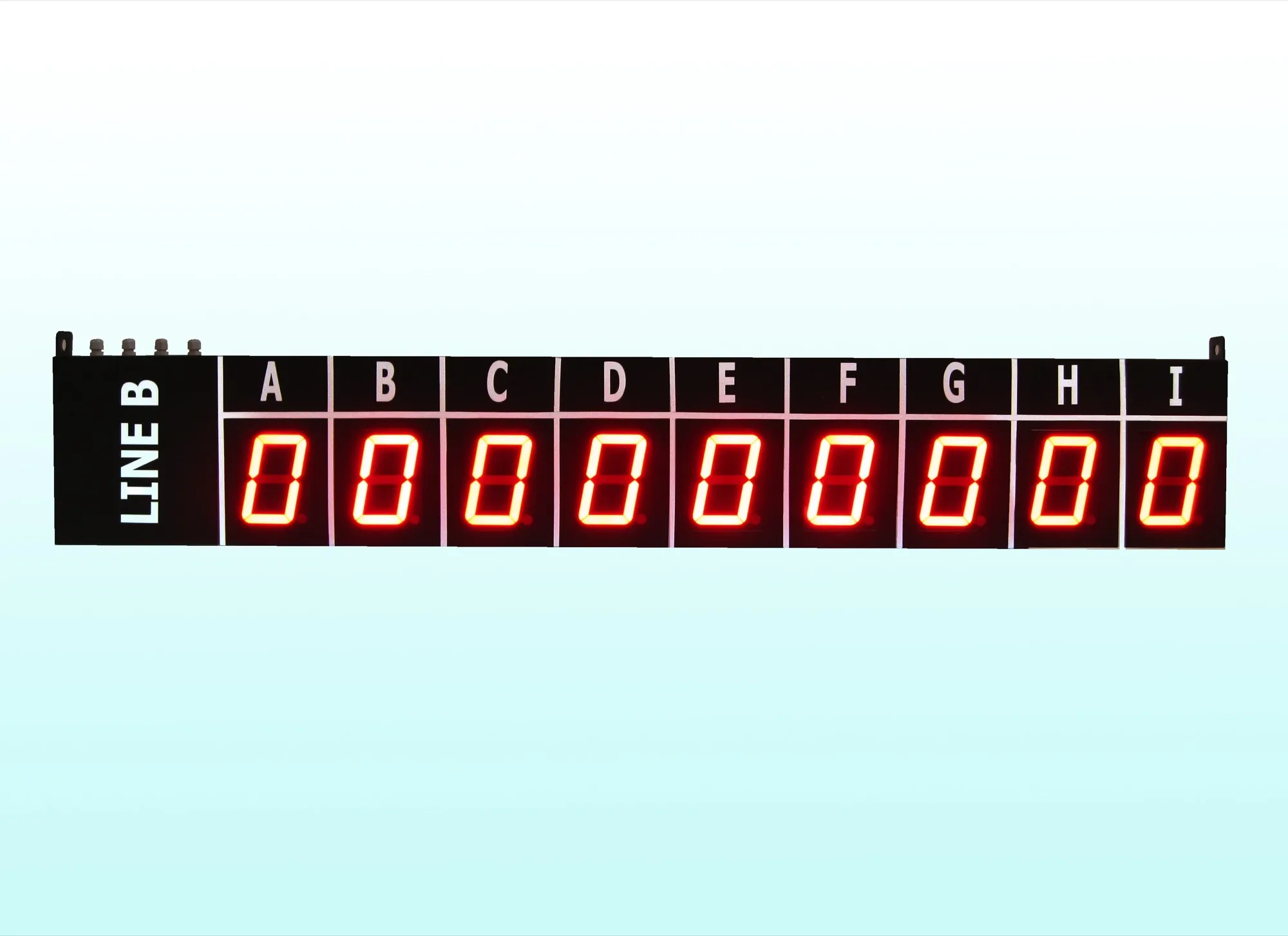

LP BCD Digital Display
A large-format LED display that shows BCD input from PLCs and controllers in parallel or multiplexed strobe formats.
- No. of Row
- One
- Figure Size
- 2.3", 4", 6", 8" and Others
- Color of LED
- RED, Green, Amber
- Digits
- 2, 3, 4, 5, 6
- Ordering code
- LPT1000-AB-CD-E
Data & signal displays
Built for
the floor
The LP BCD Digital Display accepts binary-coded decimal input from PLCs and controllers and renders it on large super-bright LED digits. It supports both parallel BCD (16 data plus a master strobe) and multiplexed strobe formats, making it a flexible remote display for production data.
Applications
Production Planning & ControlProduction Status
- Large & Accurate Super Bright Led Display
- Low Maintenance
- No. of Row
- One
- Figure Size
- 2.3", 4", 6", 8" and Others
- Color of LED
- RED, Green, Amber
- Digits
- 2, 3, 4, 5, 6
- Data Format for 4 Digits
- BCD input; 16 data + 1 master strobe (parallel); 4 data + 4 digit strobes (multiplexed)
- Sided of Display
- Single Sided or Double Sided
- Viewing Distance / Recomented / Maximum
- 2.3" Solid Segment - 60' / 80'; 4" Solid Segment - 100' / 140'; 6" Discrete - 180' / 240'; 8" Discrete - 240' / 320'
- Power Source
- 230VAC or 110VAC ± 10% 50 Hze
- Mounting
- Hang or wall Type
- Input device
- a - Edge Trigger NPN (Transistor Input); b - Relay, Microswitch etc.
- Ordering code
- LPT1000-AB-CD-E
Highlights
Promotes Healthy Team (Line) Competition or Awareness
Indicates Corrective Action Needs
Motivate Staff & Improve Productivity
Real Time Production Information for supervisor & Manager
